Zhejiang Winner Electronic Co., Ltd

Reliability and durability;

Advanced automatic detection: width, length, IR, MG, MT, UV, Spectrum;

Automatic and manual detecting model;

Multi-counting speed;

Multi-CPU system inside;

Key components imported from Europe, America and Japan;

Works with brushed DC motor, roller friction system;

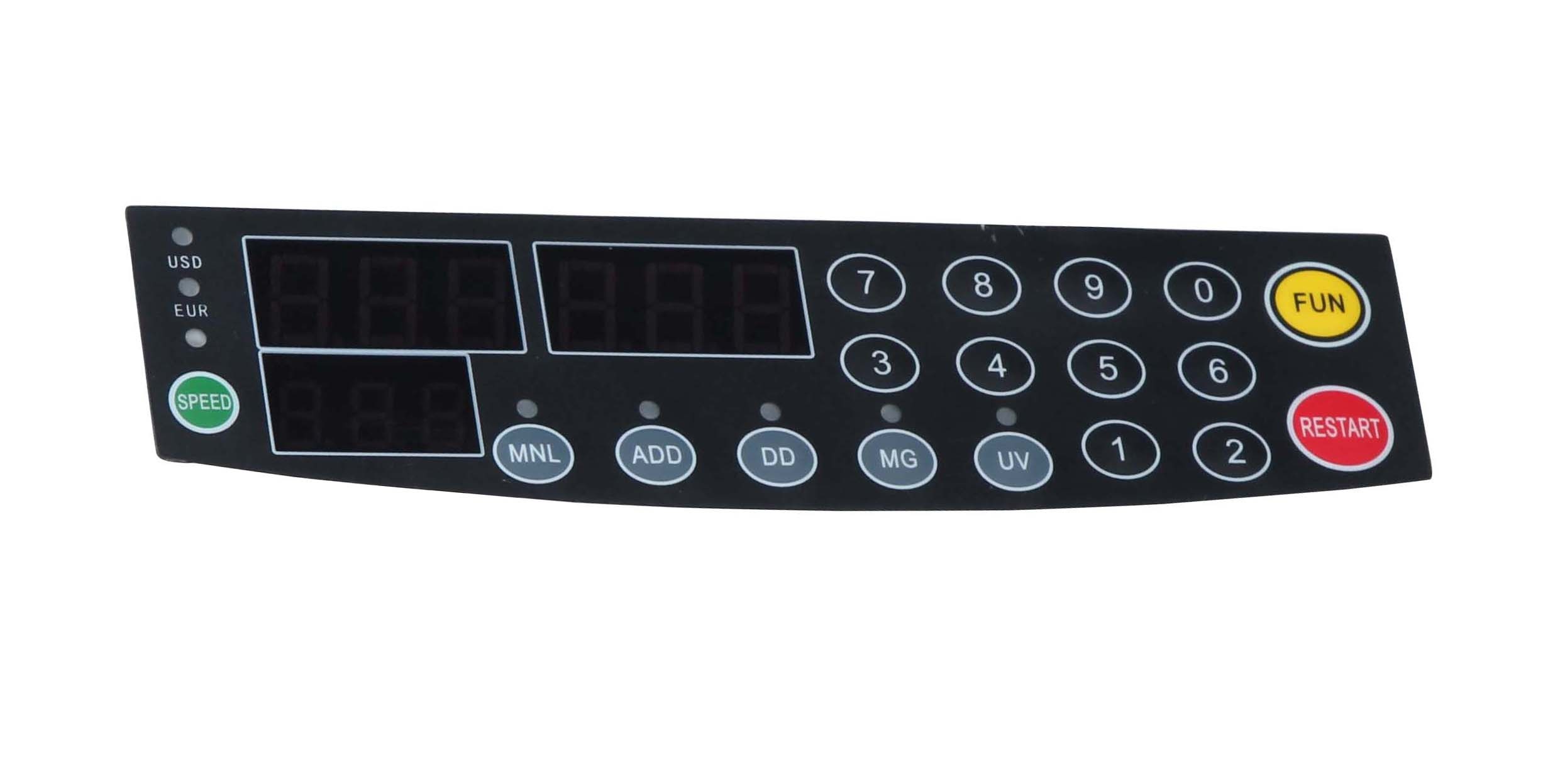

Large LCD screen;

Precaution for note leakage;

Double notes, half note detecting;

Stuck note detecting;

Accuracy: up to 99.9%;

Easy maintenance, upgraded by RS-232C;

Warranty period: one year;

Lifetime: >5 years;

Solution for bank, post office, supermarket, casino, retailers etc.

Specifications:

Feeding system:    Roller friction system

Hopper capacity:    400 sheets/notes

Stacker capacity:    200 sheets/notes

Size of countable banknote:  50x90~110x185(mm)

Thickness of countable banknote:  0.075~0.15(mm)

Counting speed (3 levels):   900notes/min,  1200notes/min,  1500notes/min

Power supply:  AC100~240V, 50~60HZ

Power Consumption:  50W

Dimension:  272mmx235mmx239mm

Net weight:   7.5kg
