Zhejiang Winner Electronic Co., Ltd

Physical parameters

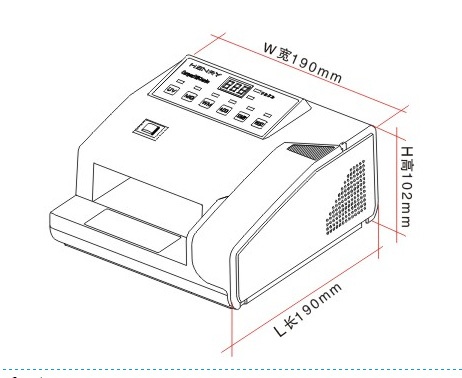

Dimension

(L)190mm×（W）190mm×(H)102mm

Size of carton

(L)465mm×(W)460mm×(H)425mm

20 foot container

(L)5.69m×(W)2.13m×(H)2.18m   240ctns/20”

40 foot container

(L)11.8m×(W)2.13m×(H)2.18m   500ctns/40”

Net weight

0.71kg

Gross weight

14.8kg (12pcs)

Technical parameters

Power supply/frequency

AC100V-240V,  50/60HZ,   DC12V

Power consumption

≤4W(max)

AC current

≤0.5A (max)

Counting speed

≥600pcs/min

Size of countable note

L :50-100,  W: 90-168

Thickness of countable note:

0.075mm-0.15mm

Environmental parameters

Working environment

temperature: 0℃-40℃，  humidity: 40-90%RH

Storage environment

temperature:-25℃-55℃,  humidity: 10-95%RH

Noise

＜60 DB
